Graphite fabric (viscose precursor)

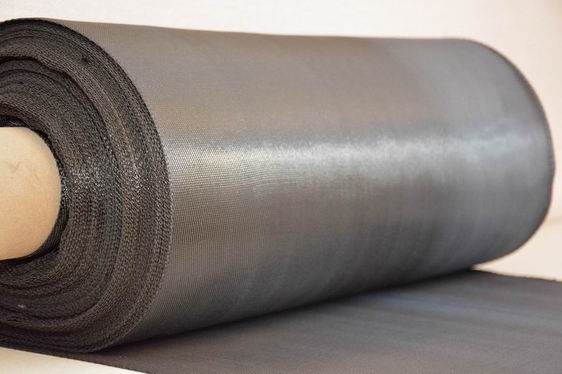

We sell rayon based carbon (graphite) fabric

Graphite farbic has many special applications

Contact us today

All rayon based carbon fabrics are made from rayon fabric-precursor woven from viscose technical yarn

Main properties of viscose based carbon fabric

  • thermal resistivity up to 3000 C (inert gas or N2)
  • thermal resistivity on air up to 450 C
  • chemical resistivity same as graphite
  • no melting point
  • electroconductive
  • content is 99+% of carbon + mineral ash less than 1%
  • carbon cloth is soft, flexible, no skin irritating
  • easy to impregnate with resins (epoxy, phenolic)

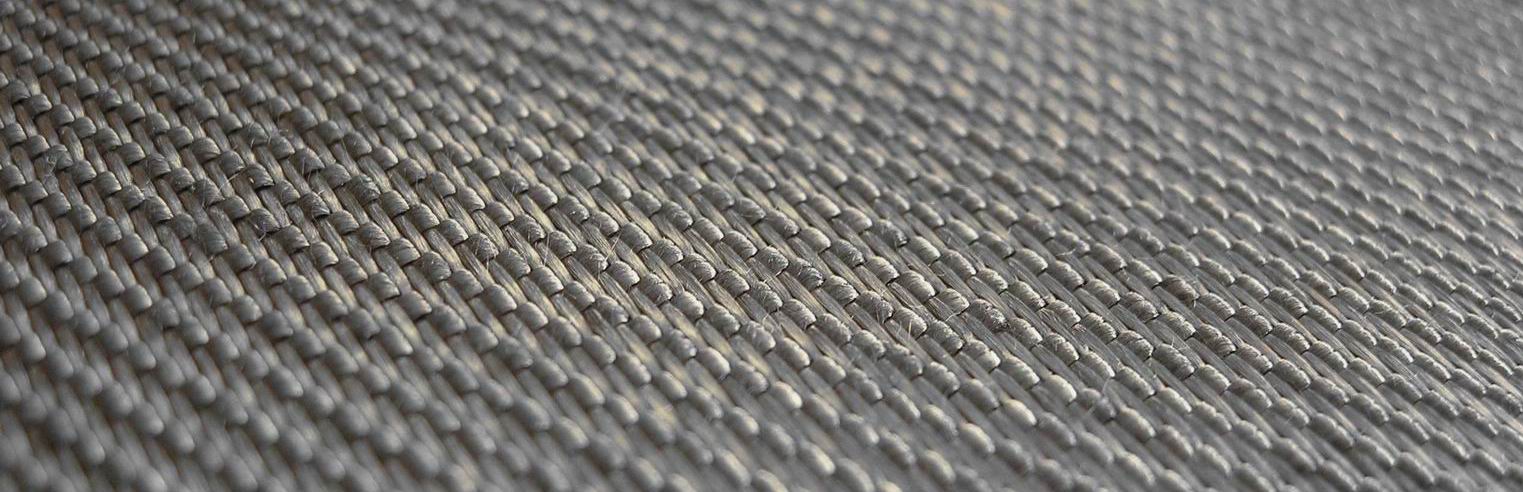

Main textile structure is twill 2/2. Plain and satin are also available

Normally fabric is treated at 2200 C

Available fabric weight per sqm is 170, and 330g

Width 50, and 100cm


Main application is production of carbon-carbon and carbon-phenolic composites

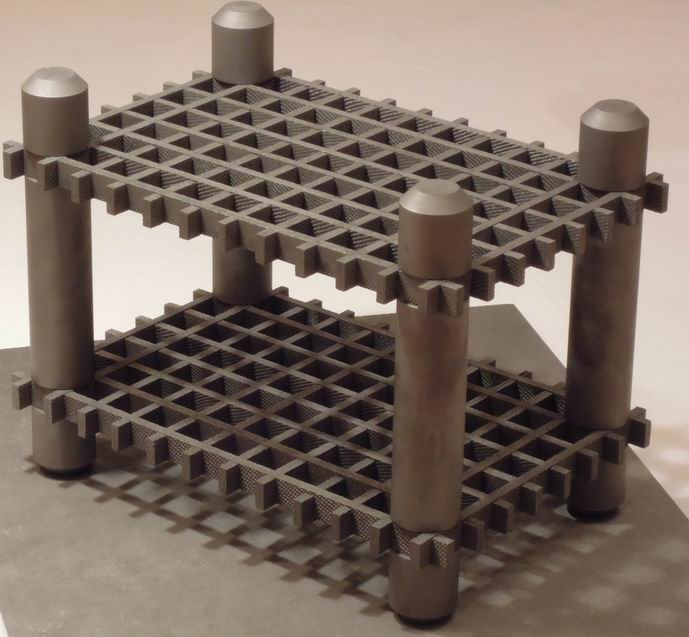

Загрузочная решетка из углекомпозита

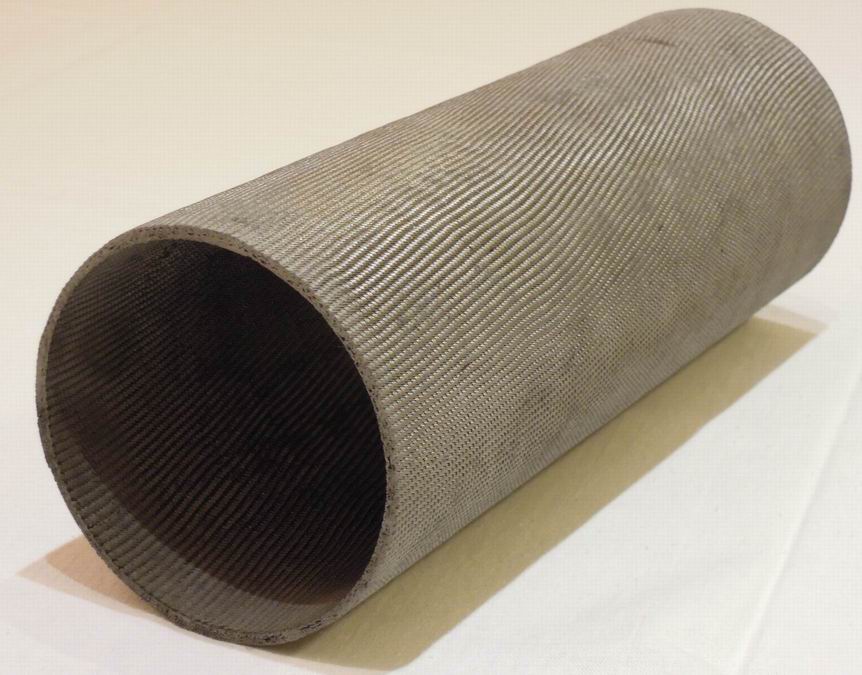

Тонкостенная труба из углекомпозита

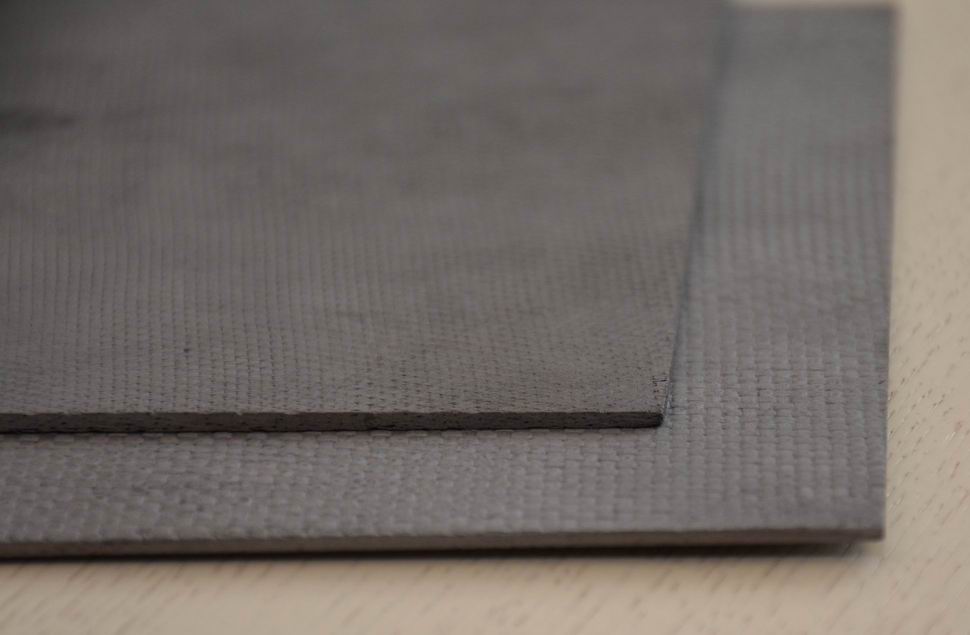

Углерод-углеродные плиты

Other applications

  • high temperature insulation of vacuum furnaces
  • special carbon plastics (both epoxy and phenolic)
  • carbon fiber reinforced rubber
  • electrical heaters
  • medical electrodes
  • technical electrodes for chemical industry and metallurgical application
